Description
No training needed, easily identify threats with our built-in frequency library. Comes with a 2-hour introduction to Delta X video class for Free! 24/7 Monitoring
Design Advantages

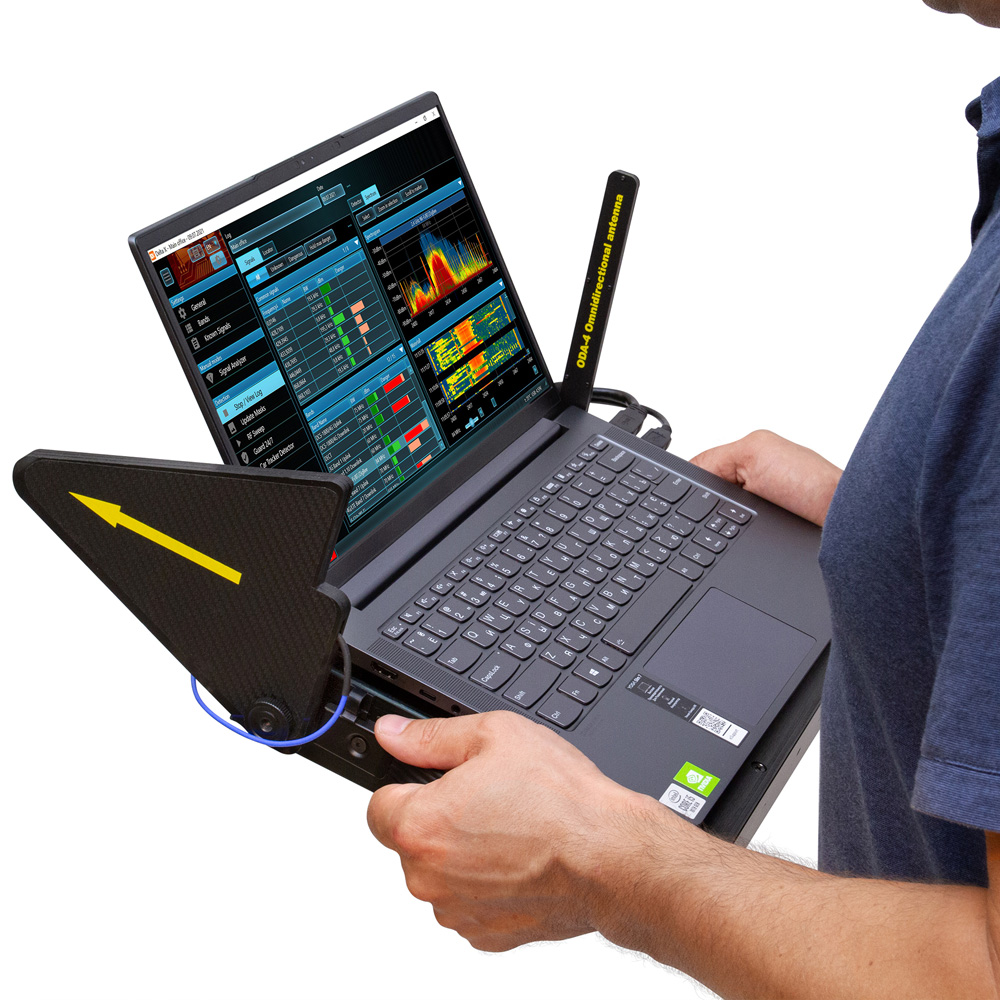

- Easily carry the Delta x G2 from room to room with the new Portable design
- Price point Delta X is an affordable Spectrum Analyzer

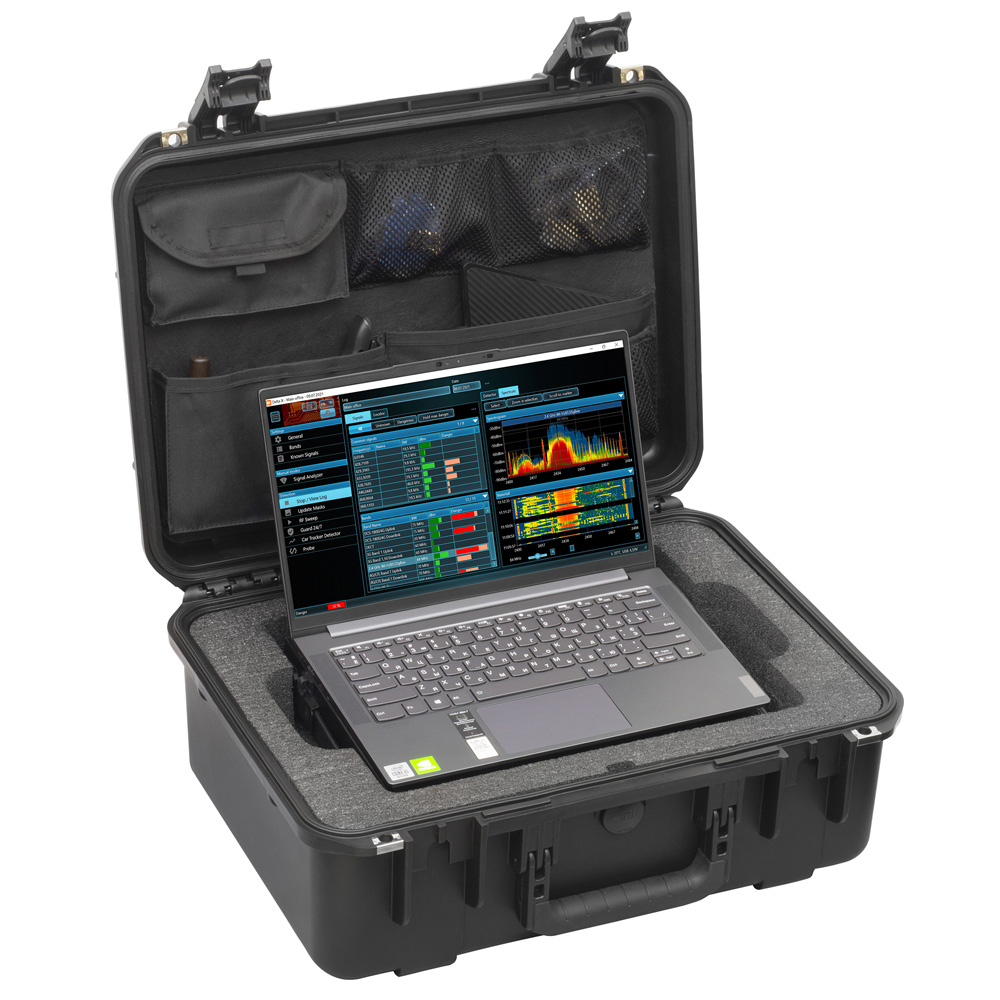

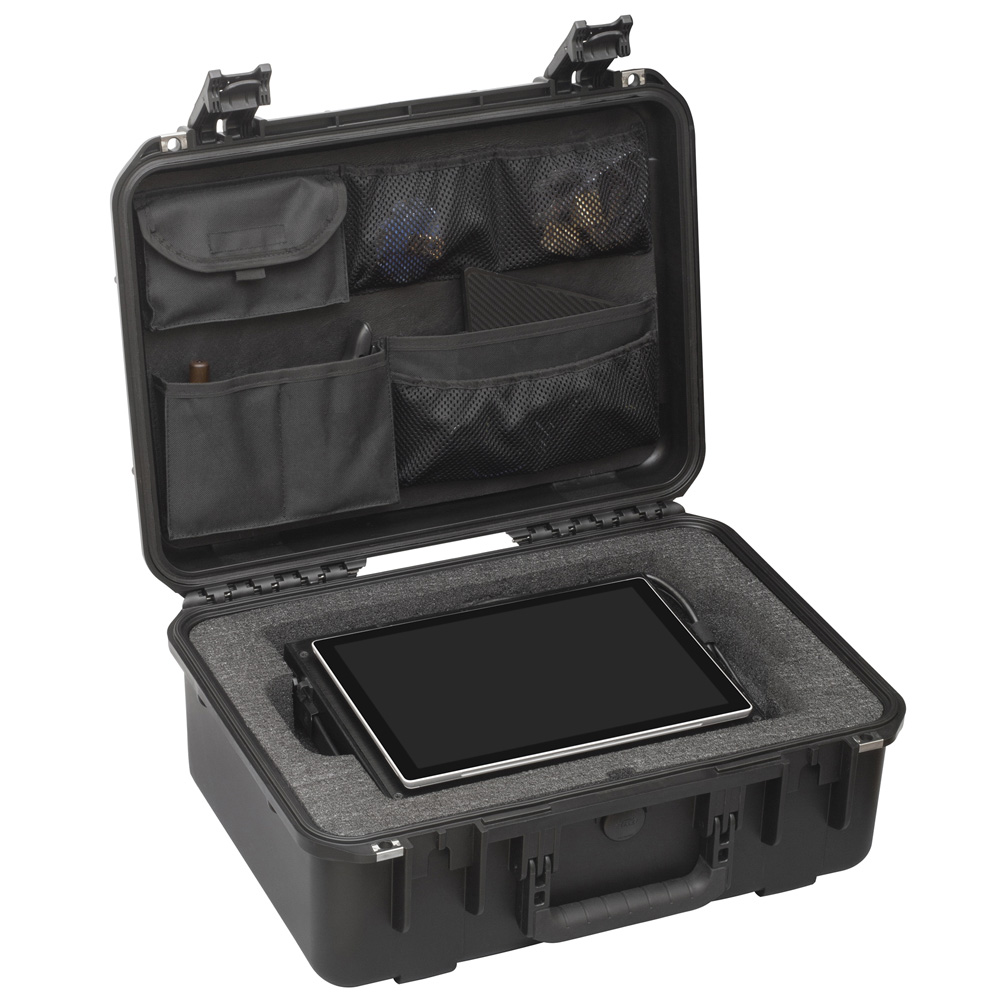

- Mount existing Laptop or tablet with use of provided magnetic holders
- Compatible with touch screens
- 24/7 monitoring with High capacity of a laptop or tables hard drive enables full data logging
- Side handles for ease of carrying
- All antennas fixed to the main unit
- Unique to all Delta X built-in frequency library takes the “guessing out of sweeping”
- Operators level of knowledge is no problem with the Delta X anyone can easily deployed using the “Update Mask” procedure. Everything is done automatically. After detections starts the operator is warned by audio alarm when a dangerous signal is detected.
Features
- Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly transmitting and intermittent signals, sending audio or video, with or without encryption
- Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G (
- Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
- Modes: instant detection mode, guarding/Monitor mode, locating mode and car tracker detection
- Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
- No need to be onsite Monitor the RF environment 24 hours a day with data logging
- “Known Signals” the operator can easily distinguish between safe and dangerous signals
- Mobile and wireless bands can be adjusted to the bands employed in the country of use with supplied data files.
Note: Laptop or tablet is not supplied in this set
Requirements for Laptop or tablets.
Intel Core i3/AMD Ryzen 3 or higher (Intel Core i5/AMD Ryzen 5 Recommended)
1x USB 3.0/3.1/3.2 or (USB Type C), 1 USB 2.0 or (USB Type C)
Ram 8Gb or more, SSD 128Gb or more
Windows operating system only 7,8,10 or Newer
Screen size 12-14 inches
Specifications
- Frequency Range: 9 kHZ-6 Ghz
- Fields of “Bands” table: Begin, End, Name, Type, Threshold, Priority, Tracker Detection
- Fields of “Signals” table: Frequency, Bandwidth, Name, dbm Peak level, Danger Level, Peak Danger Level
- Updated spectrum span: RF Sweep, Guard 24/7: broadband, Signal Analyzer: displayed, selected, real-time, Car Tracker detector: mobile bands
- Detector’s modes: Wide-Range, Signal, Selection
- Spectrogram’s displayed data: Persistence, Live Max, Threshold
- Spectrum graphs: Spectrogram, Waterfall
- Displayed dynamic range: 0.5,1,2,5,10,25,50,100,200,500,1000,2000,3000,6000,12000 MHz
- Temperature Range:0 C to +65 C
- Spectrum resolution: 9,8 kHz
- Occupied disk space per 24 hours <12 GB
- Probe inputs: PROBE
- Antenna inputs: INPUT, AUX
- Reaction time: 2-3 sec
- Update rate 2-3 GHz/sec
- Fields of “Known Signals” Table: Frequency, BW, Name, Modulation
Signal Detection
- LTE
- Digital Signals
- 3G
- 4G
- GPS
- CDMA
- GSM
- Bluetooth
- Wi-Fi
Detection Range
- Up to 6 Ghz
Power Type
- Battery
