Description

• Quickly and reliably detects all types of RF surveillance devices in the range up to 6 GHz, including analog, digital, working continuously and periodically, transmitting audio or video, with or without encryption
• Finds and identifies covert surveillance devices which use the digital standards GSM, 3G, 4G / LTE, 5G, Bluetooth, Wi-Fi, DECT and others in the range up to 6 GHz
• Analyzes Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Bluetooth, “Bluetooth LE” and “Bluetooth LE Advertising” channels
• The background masking feature allows you to reject friendly signals such as television, radio, mobile base stations, etc., and focus on finding local signals that pose a danger
• Can be quickly adjusted to the local frequency allocation in the country of use (mobile and wireless bands)
• High-speed spectrum updating and wide real-time bandwidth (RTBW) provide the ability to register short-burst signals
• Search modes include: “All Signals”, “Mobile/GPS trackers”, “Wireless/ISM” and “Custom”, as well as two additional modes for the inspection of suspicious bands or signals
• Two antenna inputs and built-in antenna switch provide maximum sensitivity over the entire frequency range
• Unlimited number of logs, each can contain an unlimited history of events
• Unlimited number of logs, each can contain an unlimited history of events
• The audio alarm warns the user about the presence of danger with a sound of variable intensity
• The attenuator simplifies location of powerful transmitters
• The “Hold maximum danger” feature automatically displays the most dangerous band or signal
• Demodulation of audio in AM/FM mode

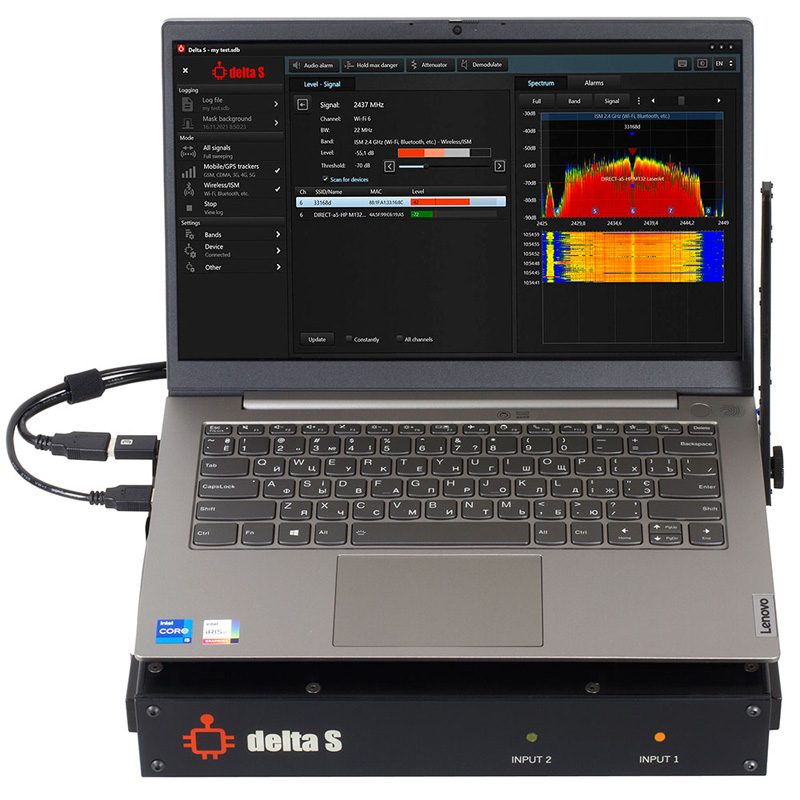

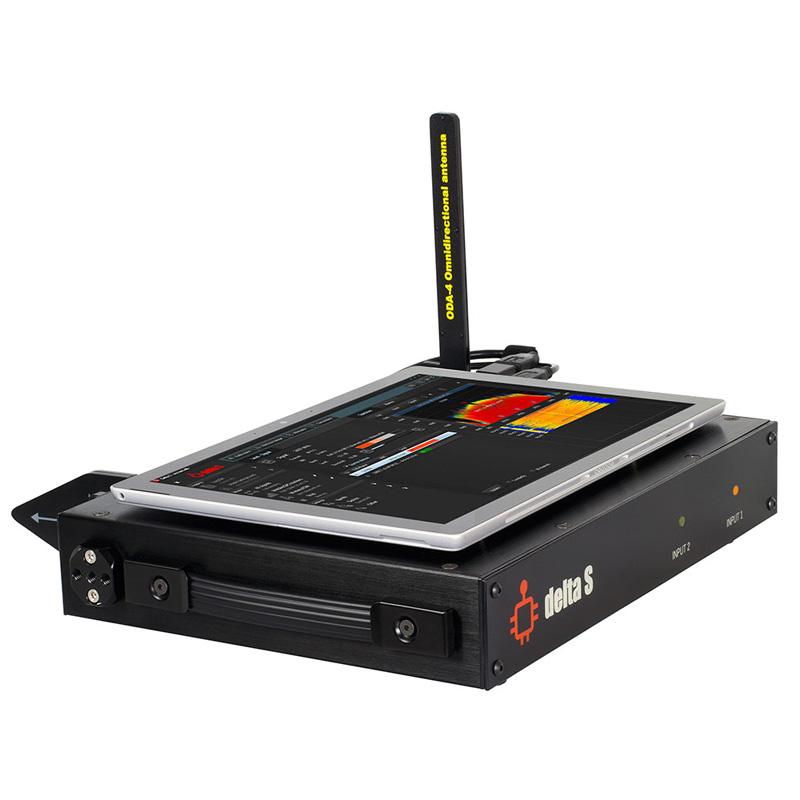

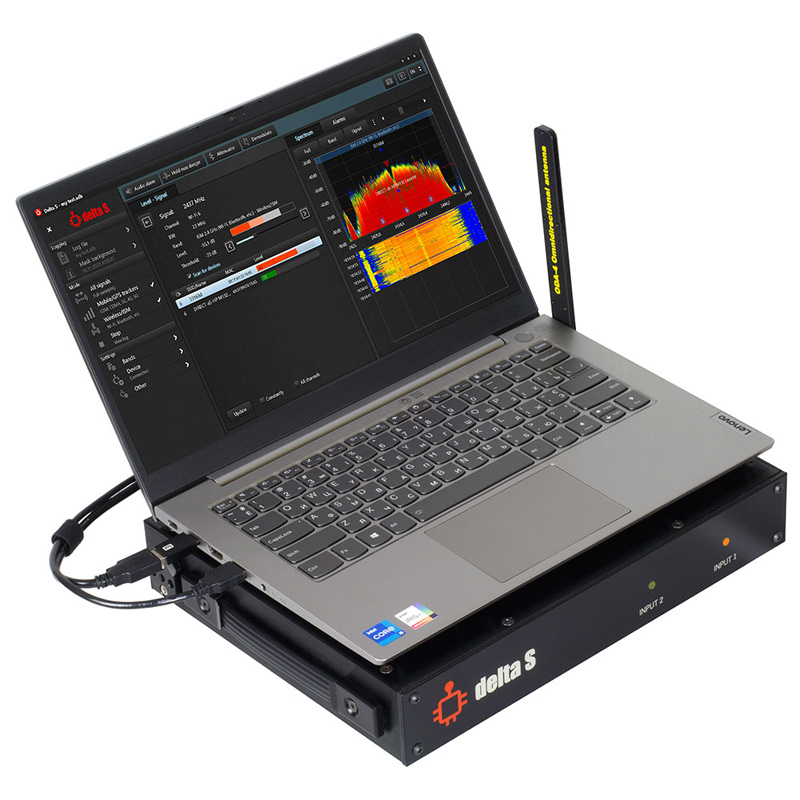

• Works with, and is powered by, a laptop or tablet (not included)
• Has convenient magnetic system for attaching the laptop / tablet to the main unit

• Frequency range 57-6000 MHz
• Sweeping speed 8 GHz per second
• ADC resolution 12 bit
• Sensitivity -85 dB
• Dynamic range 80 dB (with attenuator)
• Displayed signal level -90…-10 dB
• Real-time bandwidth (RTBW) 27 MHz

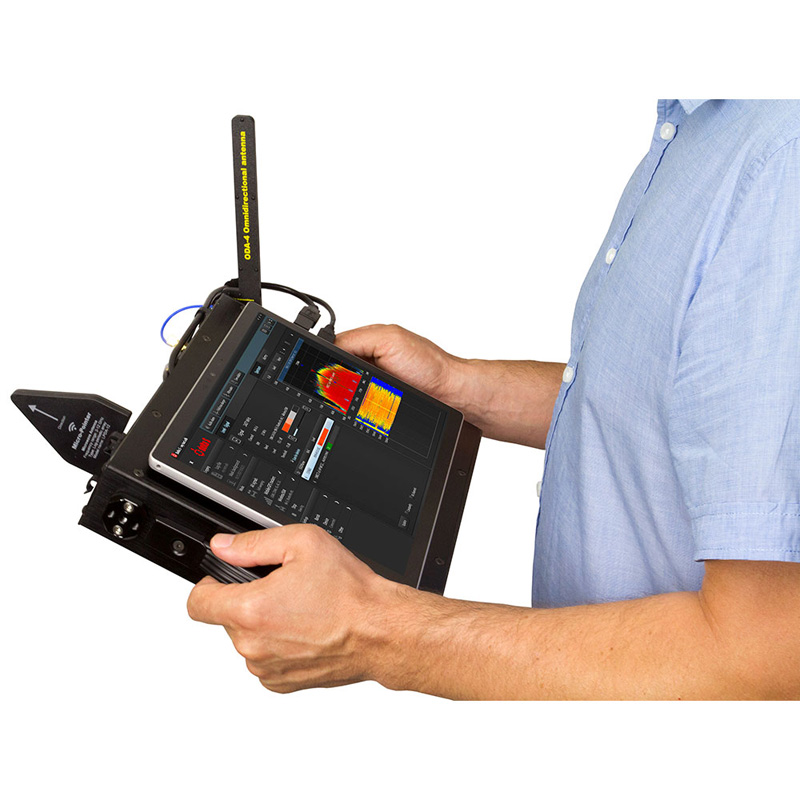

• Format Handheld unit
• Platform SDR by Analog Device
• Antenna inputs INPUT 1 – SMA, 57-2000 MHz INPUT 2 – SMA, 2000-6000 MHz
• Searching modes and time of update • All signals (~0.8 s) • Mobile/GPS trackers (~0.2 s) • Wireless/ISM (~0.3 s) • Inspect band/signal (~0.1-0.2 s)
• Visual elements (panels) • Level • Spectrum + Waterfall • Alarms
• Demodulation AM and FM with bandwidth 5, 15, 30, 100 and 200 kHz (in the range 70-6000 MHz)
• Requirements for laptop / tablet Intel Core і3 / AMD Ryzen 3 or better (recommended Intel Core i5 / AMD Ryzen 5) 2 USB ports, one should be of SuperSpeed type (USB 3.0/3.1/3.2 or USB Type C) RAM 8 Gb or more SSD 128 Gb or more Windows 8,10,11. Screen size 12-14”
• Powered by USB-port of laptop / tablet
• Battery resource 1-1.5 hour
• Duration of work from AC Unlimited
• Displayed spectrum span 2 – 6000 MHz
• Range of working temperature -5°C…+45°C / 23°F … 113°F
